Specifications（规格）: Ø15mm-- 300mm

Maximum length（最大长度）: no more than 10000mm

Material（材质）: 38CrMoAlA

Nitriding, surface hardness（氮化处理，表面硬度）: HV > 900

Depth of nitrided layer（氮化层深度）: 0.5-0.8mm

Nitriding hardness（氮化硬度）：HV950-1050

Alloy thickness（合金厚度）: > 2mm

Alloy hardness（合金硬度）: HRC58 --66

To improve plasticizing effect, different raw material need different screw structure design.

为提高塑化效果，我们通常会根据不同材料设计不同的螺杆结构。

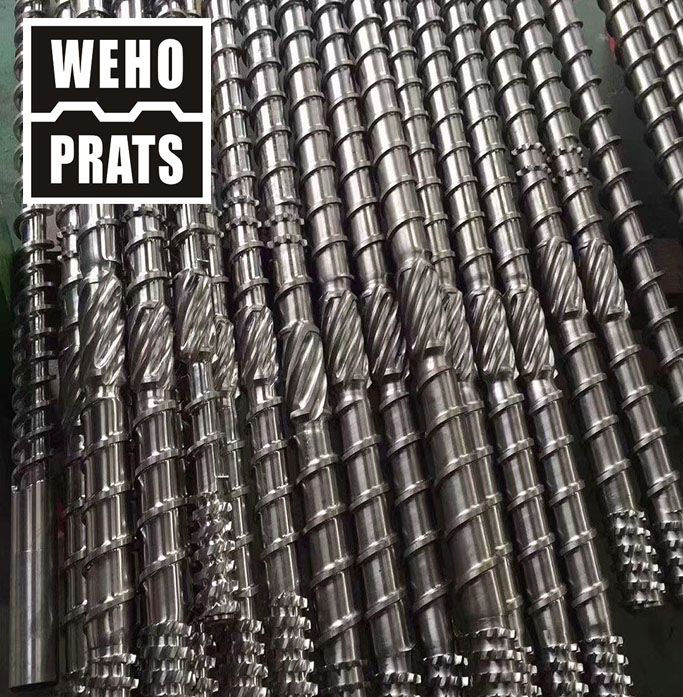

Screw type螺杆结构分类:

Gradual type, mutation type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, mixing type, double-head type, three-head type, multi-head type, pelleting type, etc.

渐变型、突变型、波浪形、屏障型、双屏型、分流型、分离型、排气型、销钉型、混合型、双头型、三头型、多头型、造粒型等
